UR5e True PINN IK.

A physics-informed inverse kinematics solver for a 6-DOF industrial robot.

This UC Berkeley robotics project explores inverse kinematics for the Universal Robots UR5e using a True Physics-Informed Neural Network. Instead of treating IK as a purely supervised regression problem, the model is constrained by a differentiable PyTorch forward-kinematics layer so its predictions remain tied to the robot's physical geometry.

The result is integrated inside Webots: a simulated robot detects a target, predicts a 6-DOF joint configuration, executes a smooth pick-and-place trajectory, and is compared against an analytic IKPY baseline in a side-by-side benchmark environment.

Back to Project Vault Open benchmark visual

PyTorch PINN
UR5e forward kinematics
Webots simulation
IKPY comparison
Computer vision target pipeline

01. What it does

A compact IK pipeline that connects target perception, physics-informed joint prediction and robot motion inside a simulated industrial manipulation task.

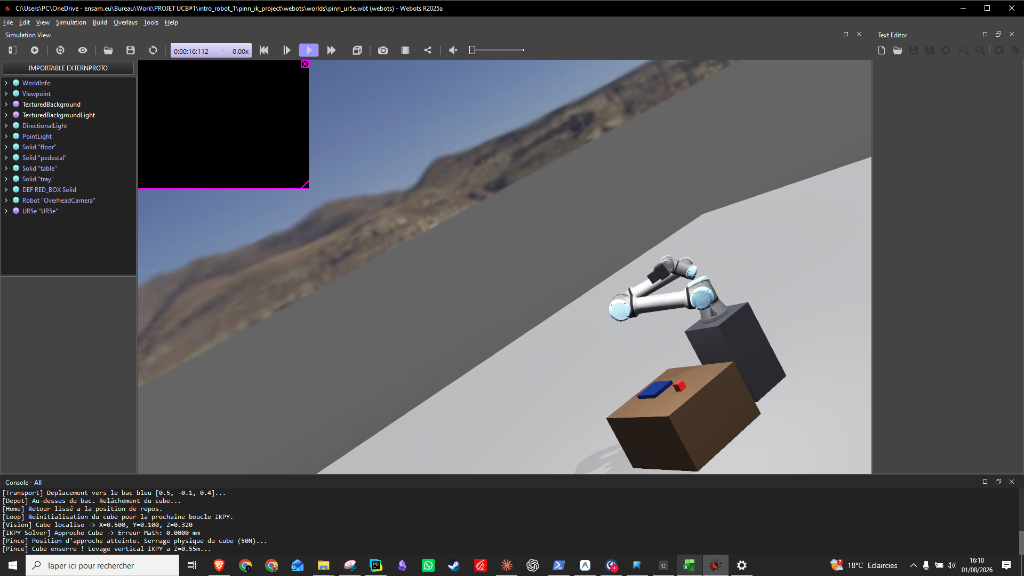

UR5e Webots single-robot simulation preview

Pipeline

From target position to smooth robot actuation.

The Webots camera identifies a target object and converts the detection into a Cartesian position. The trained PINN predicts the six UR5e joint angles needed to reach that point, while the controller executes a smooth trajectory and closes the gripper around the object.

Input

3D target position from the simulated perception layer.

Model

Neural IK with a differentiable FK consistency constraint.

Output

Six joint angles executed by the UR5e controller.

Benchmark

True PINN versus analytic IKPY inside the same Webots scene.

A second simulation world runs two UR5e robots side by side: one driven by the True PINN and one driven by analytic matrix-based IK. The comparison highlights execution time, motion consistency and the branch-flipping behavior that can appear when multiple analytic IK solutions are valid for the same end-effector position.

Average compute time: True PINN around 0.35-0.45 ms in the project benchmark.
Solution behavior: deterministic and smooth joint predictions.
Model property: differentiable pipeline suitable for learning-based robotics work.

Physics-informed neural network architecture diagram

Engineering contribution

The key idea: constrain learning with robot physics.

The project uses a hybrid loss: a data term teaches the model plausible joint configurations, while a physics term checks the predicted joints through a differentiable forward-kinematics model. That makes the neural solver less of a black-box shortcut and more of a physics-aware approximation of the robot's IK behavior.

Hybrid data and physics loss
Forward kinematics in PyTorch
Joint-limit aware prediction
Simulation-ready controller path

View architecture View benchmark Return to portfolio
